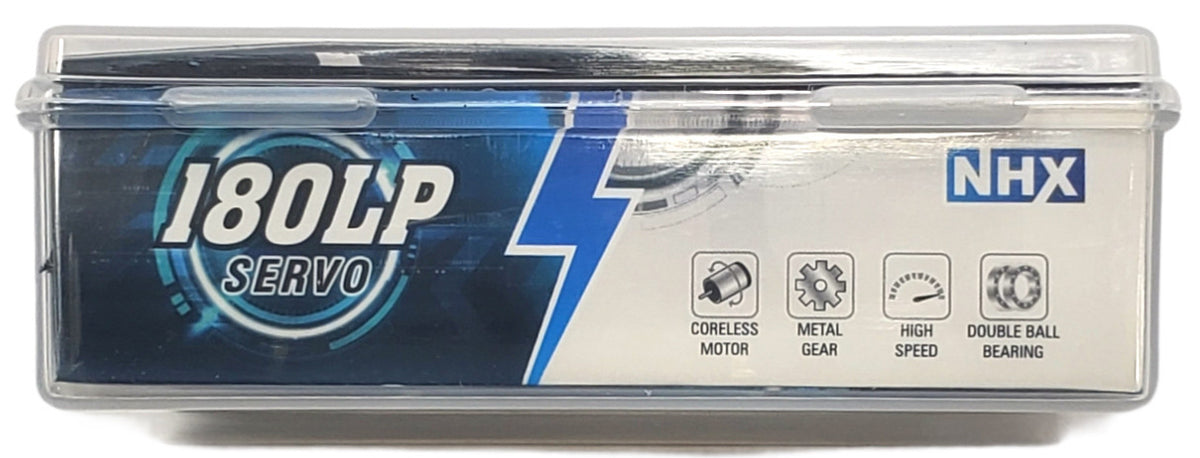

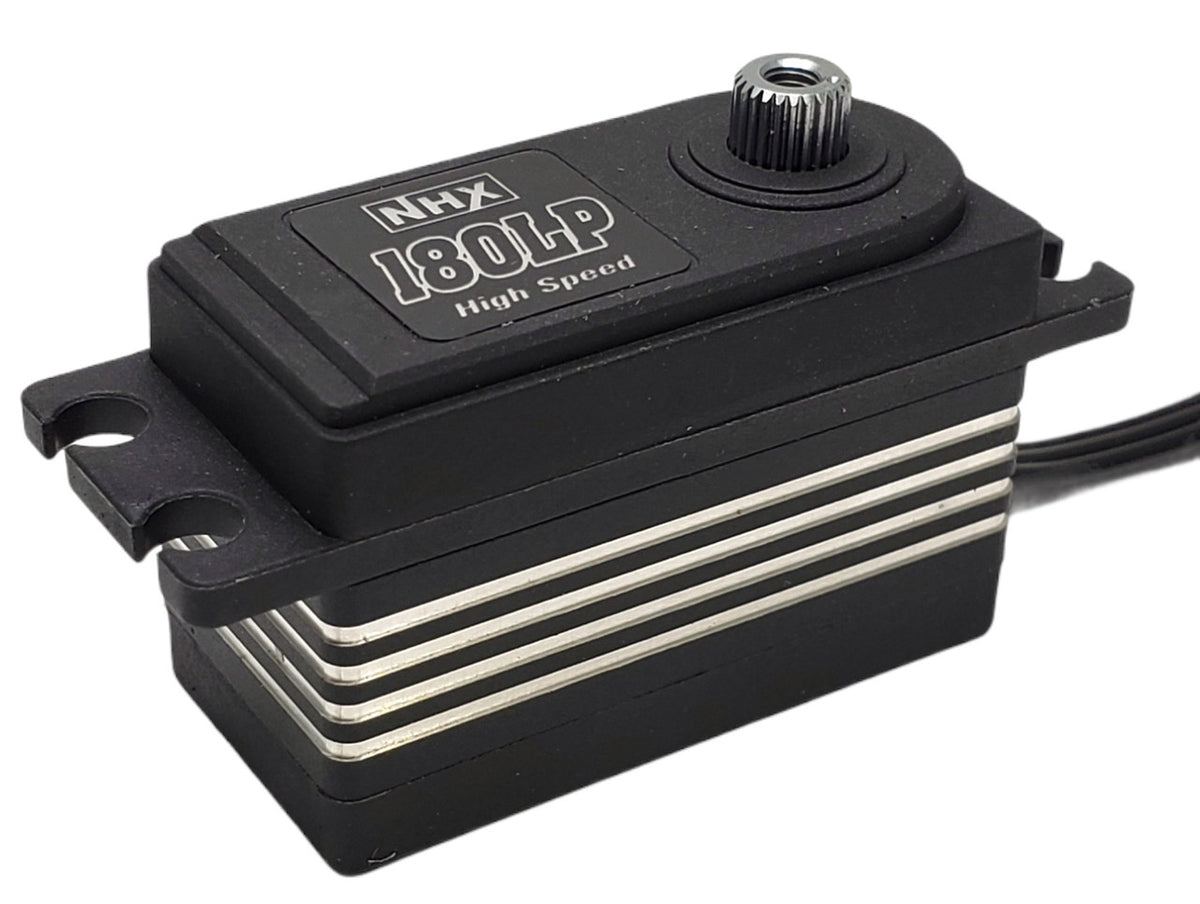

NHX 180LP Coreless Motor 180 oz / .05 Titanium Gear Digital Low Profile HV Servo

NHX 180LP low Profile , Coreless Motor , Titanium Gear, HV Digital Servo

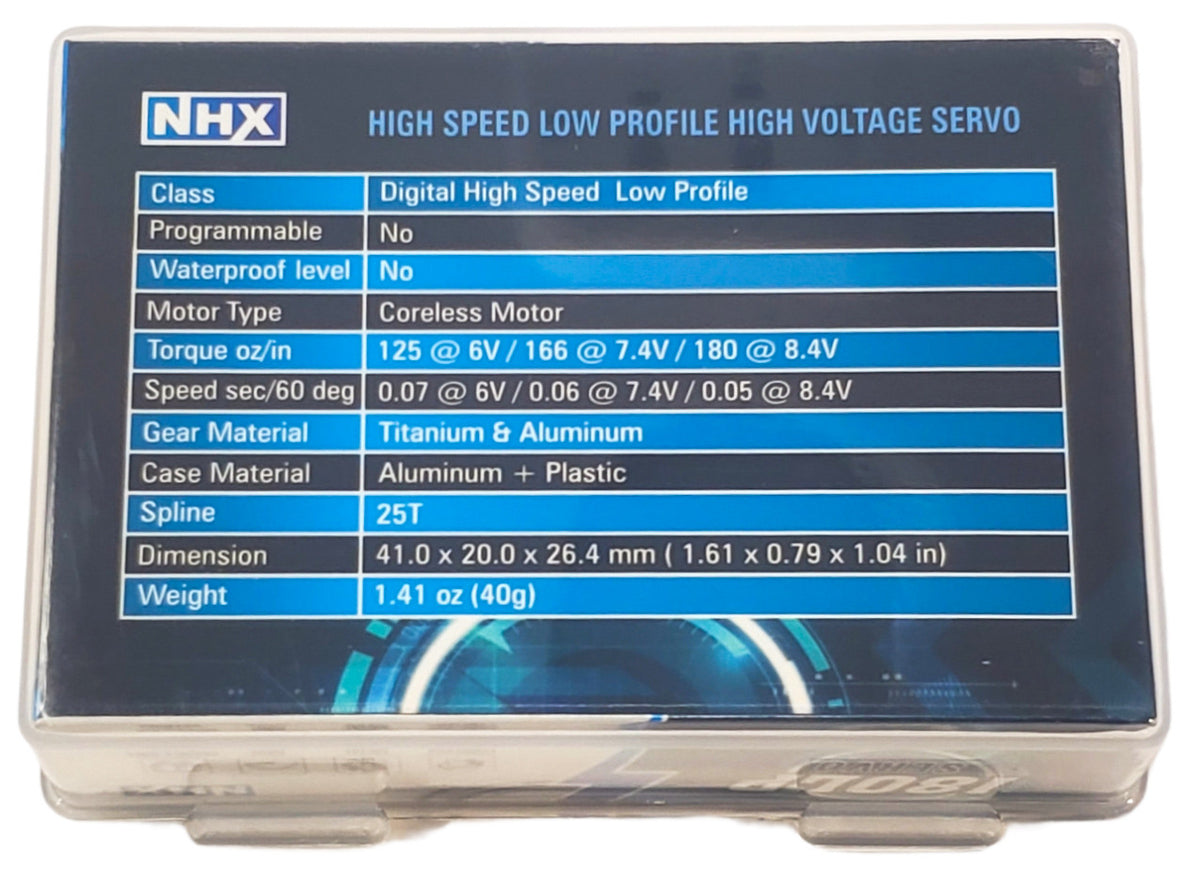

Specifications:

Torque(6.0V): 9.0 kg-cm (125 oz/in)
Torque(7.4V): 12.0 kg-cm (166 oz/in)
Torque(8.4V): 13.0 kg-cm (180 oz/in)
Speed: 0.05 sec (6.0V)
Speed: 0.06 sec (7.4V)
Speed: 0.05 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Motor Type: Coreless Motor
Gear Type: Titanium & Aluminum
Heatsink Ribs
Bearing Type: Ball Bearing x 2
Working frequency: 1520μs / 333hz
Operating Temperature: -20℃~60℃
Weight: 40.0 g (1.41 oz)
Size: 41.0 x 20.0 x 26.4 mm ( 1.61 x 0.79 x 1.04 in)
